GCP AlloyDB VS AWS Aurora Performance Comparison

Last updated: October 23 2024

Table of contents

GCP AlloyDB VS AWS Aurora Performance

AWS Aurora and GCP AlloyDB are cloud native, PostgreSQL compatible databases. They offer performance that is competitive with traditional, single-node databases (such as PostgreSQL or MariaDB) while offering extra durability and availability guarantees.

In this article, I compare the performance of the two database services using Reserva, a custom benchmarking tool I created to simulate a high volume digital payments system.

AlloyDB is 13% faster than Aurora in my most recent tests. I would recommend using it if you are already on GCP, but this difference isn’t large enough to recommend migrating existing workloads.

Reserva

Reserva is a system I made to simulate a streamlined, high volume payments processing system. It is written in Go and supports arbitrary amounts of concurrency.

On start, Reserva loads all users and authentication tokens into memory, then attempts to make as many funds transfers as possible in a loop. Each funds transfer requires 4 round trips to the database and touches 6 tables. The workflow is as follows:

  1. DB is queried to authenticate and authorize the user who is requesting payment.
  2. DB is queried to get information about the card used and account to be debited.
  3. DB is queried to authenticate and authorize the user who will approve or deny the payment request.
  4. DB is queried to update both account balances and record the payment.

Reserva allows you to select whether or not you want deletes to be part of the workload. The results on this page do include deletes as part of the workload.

Benchmark setup

First, I analyzed the options for creating AlloyDB and Aurora instances in each cloud platform. I settled on two machines that should provide roughly equal raw-metal performance. Below is a description of each machine’s key configuration parameters.

AlloyDB configuration

I deployed AlloyDB in GCP’s London region with the following settings:

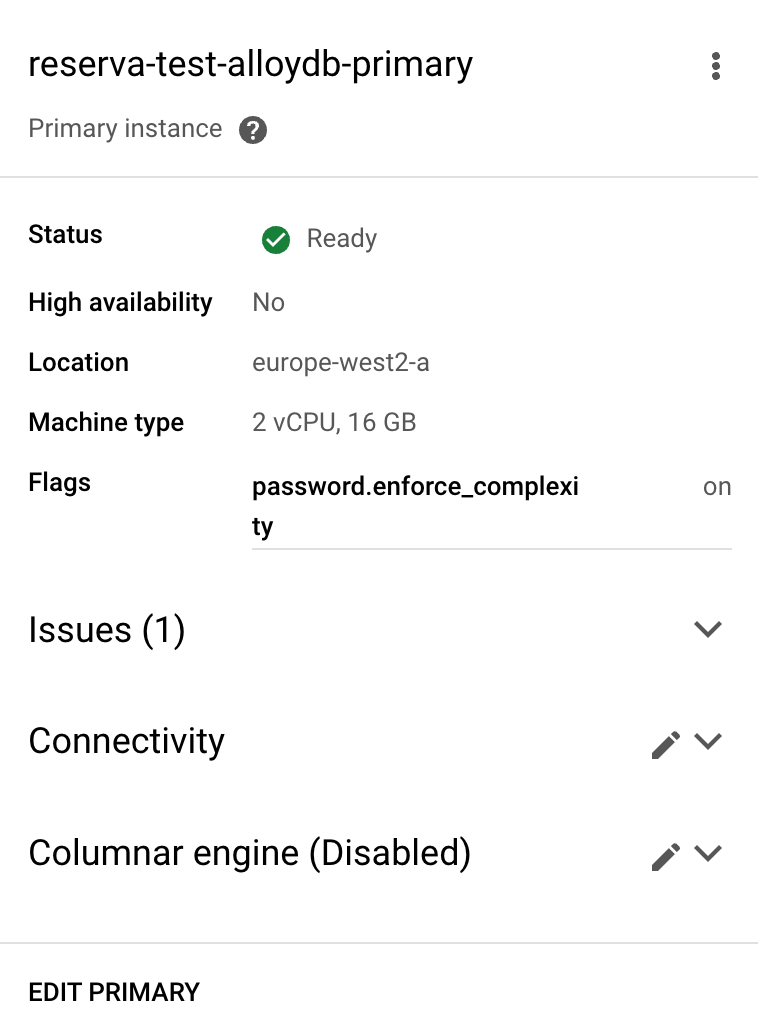

Below is a screenshot of GCP’s UI after setup:

AlloyDB benchmark setup

Aurora configuration

I deployed Aurora in AWS’ London region with the following settings:

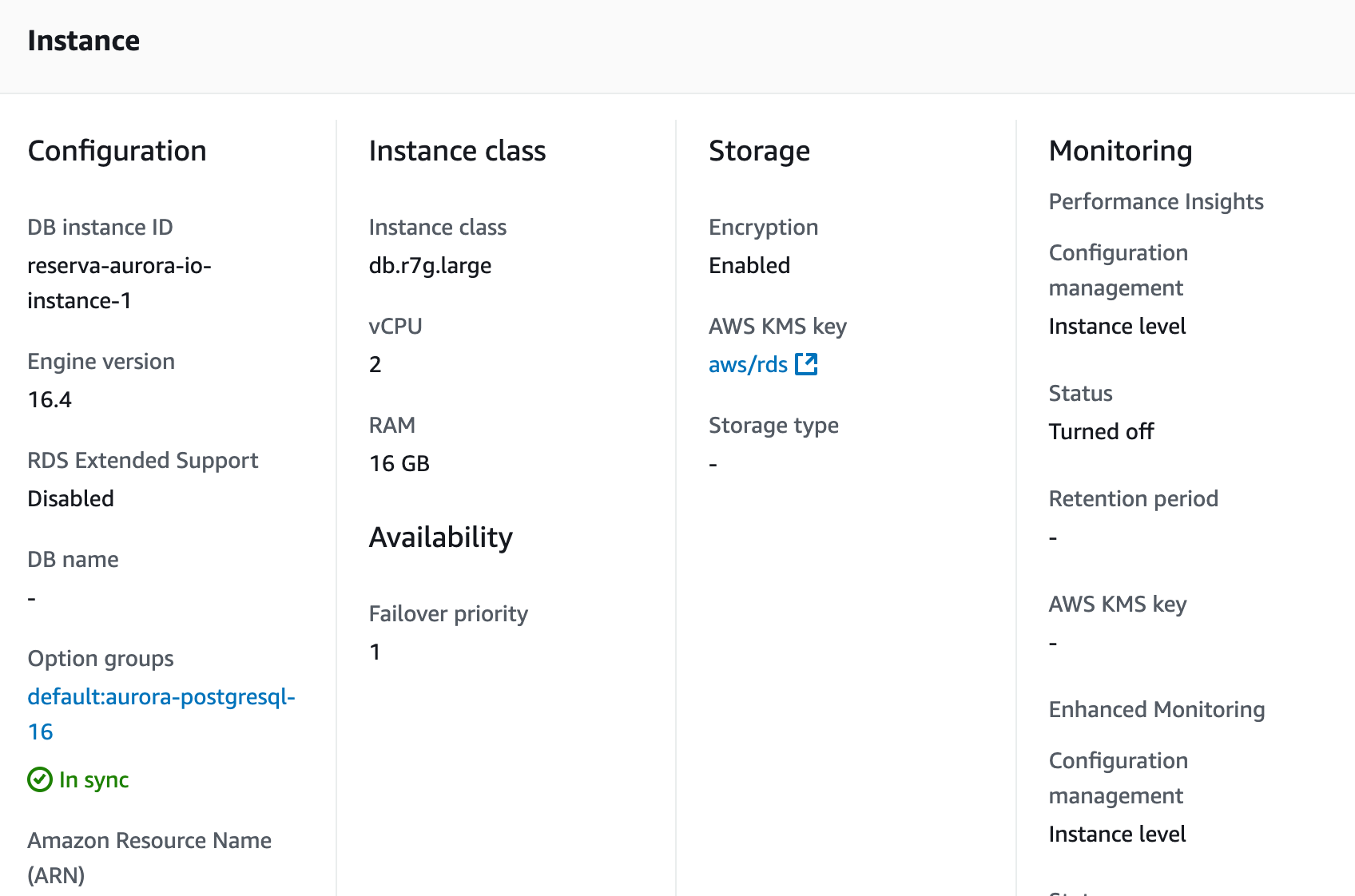

Below is a screenshot of AWS’ UI after setup:

Aurora benchmark setup

Cost comparison

Both databases are estimated to cost around $0.35 per hour for compute and memory resources, with storage costing some amount extra, depending on usage. I would guess that a busy production instance with lots of data (plus backups) would end up costing around $0.50 per hour, which comes out to $360 per month.

AlloyDB cost estimate

AlloyDB charges $0.15 per hour for the CPUs and $0.20 per hour for the RAM. I wish they gave an option to use less than 16GB of RAM, like Aurora does.

They also charge $0.00047 per GB for main storage, and $0.00016 for backup storage.

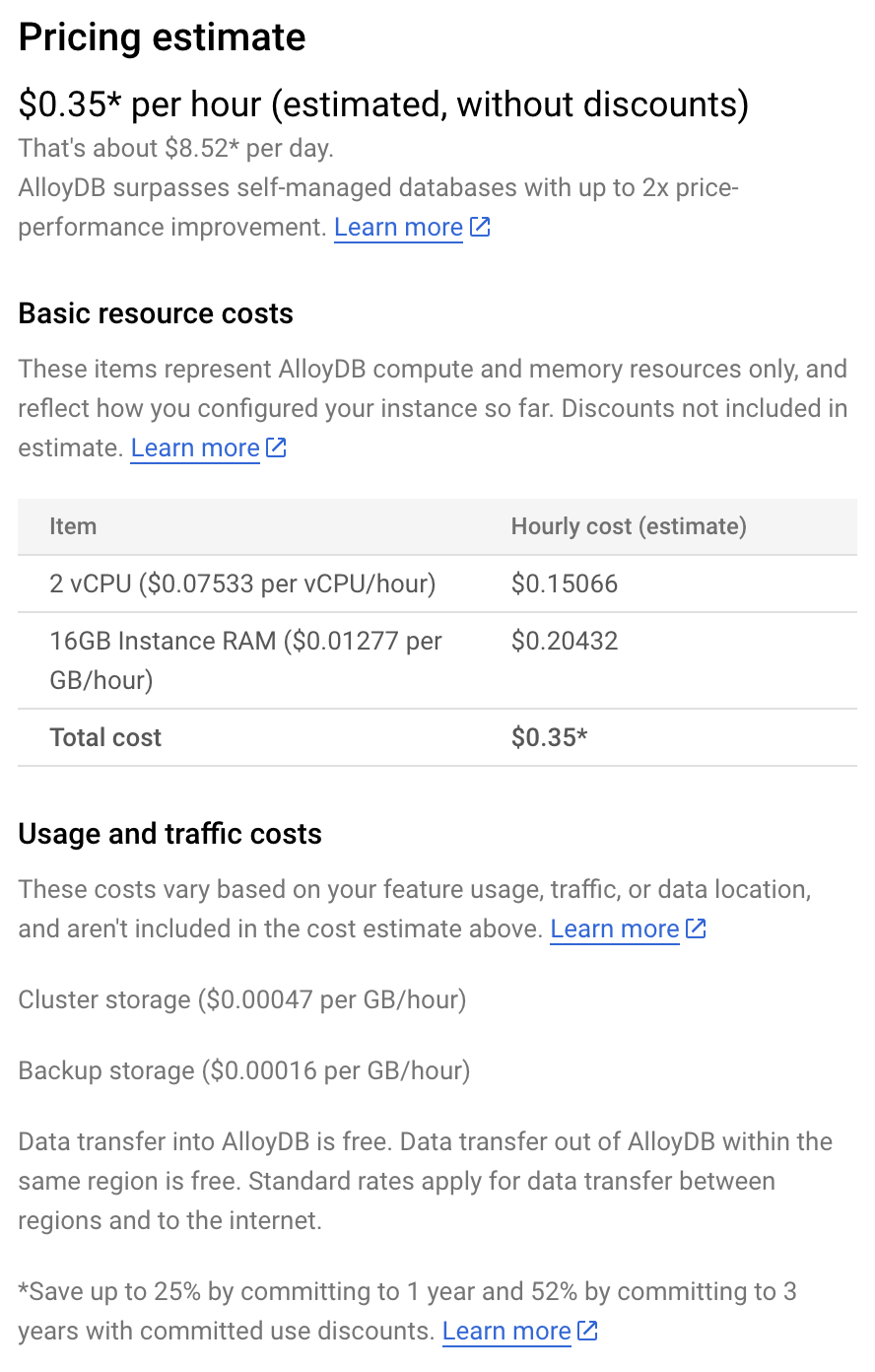

Here is a screenshot of the cost estimate provided on GCP’s UI:

AlloyDB cost estimate

Aurora cost estimate

AWS’ UI doesn’t break out the CPU, RAM, and storage cost like GCP’s does, but it ends up being around the same price per hour. $262 / 24 / 30 (to get hourly cost) comes out to around $0.36 per hour.

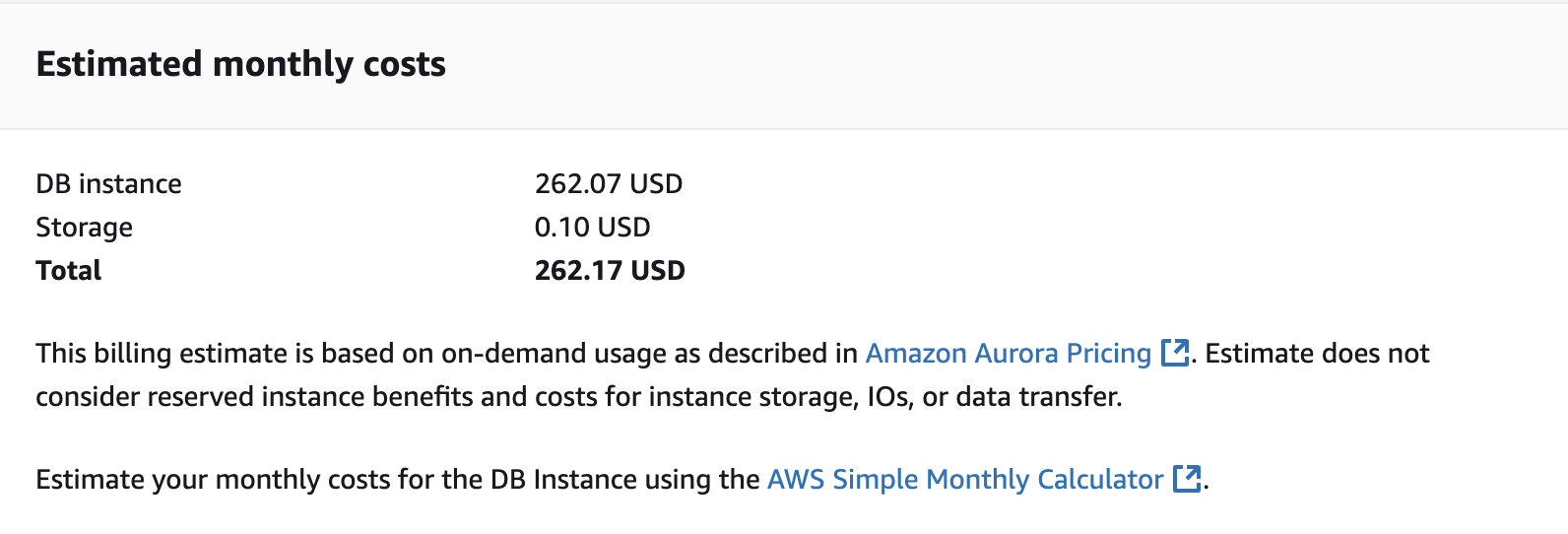

Here is a screenshot of the cost estimate provided on AWS’ UI:

Aurora cost estimate

Populating data

Next we run the DB preparation SQL scripts to create:

You can see the SQL setup scripts, along with the rest of the code, on Reserva’s Github page.

The test

I ran Reserva with the following settings for both databases:

At the end of the test, I executed the following queries to show how many payments were made over the course of the hour. The results of those queries are visualized below.

Aggregation query

SELECT
    DATE_TRUNC('minute', CREATED_AT) AS MINUTE,
    COUNT(*) AS NUMBER_OF_TRANSFERS
FROM
    TRANSFERS
GROUP BY
    MINUTE
ORDER BY
    MINUTE;

Results

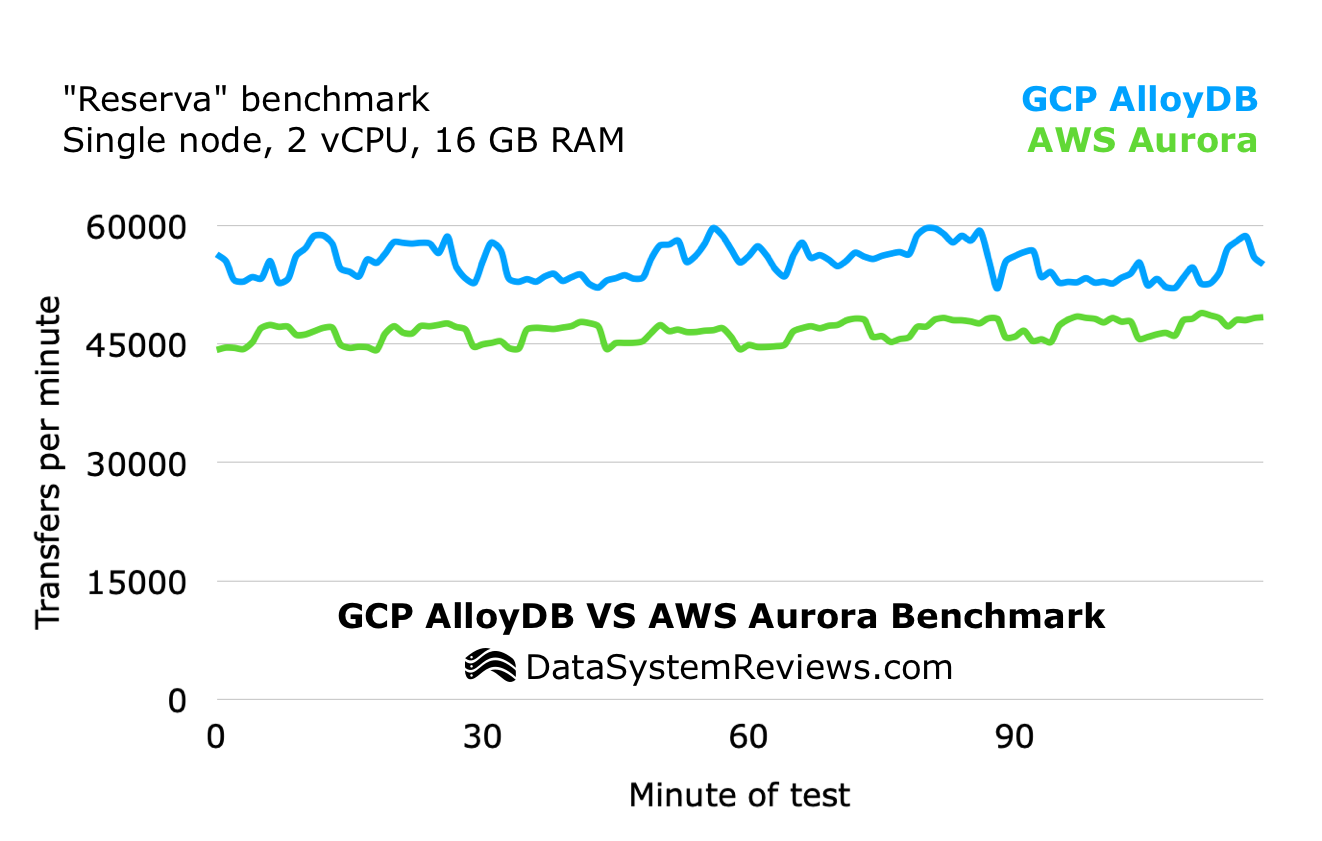

GCP AlloyDB VS AWS Aurora performance

As you can see, AlloyDB was faster overall, and there didn’t seem to be any convergence happening.

It is worth noting that because deletes were enabled in this run, 1 out of every 20 funds transfer loops also deletes a random transfer. So, the actual amount of fund transfers processed for each database is 5% higher. For comparison purposes, the results are still valid.

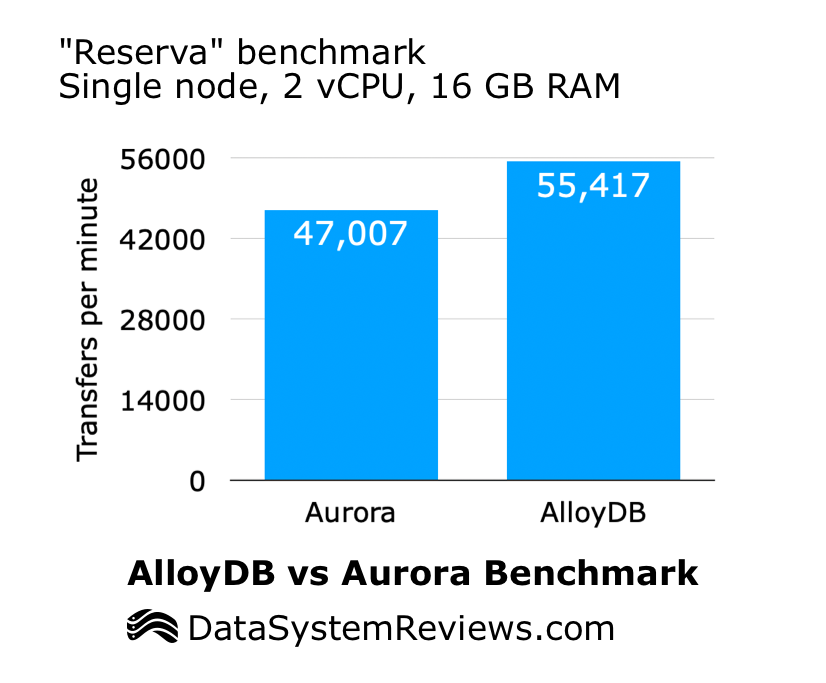

I also aggregated the last hour of the test in a spreadsheet to create a simple “transfers per minute” bar chart, shown below. AlloyDB is 23% faster in the time frame that I selected.

GCP AlloyDB VS AWS Aurora transfers per minute

Conclusion

GCP AlloyDB is 13% faster than AWS Aurora in this particular use case.
